Live Attenuated Reassortant Vaccines Based on A/Leningrad/134/17/57 Master Donor Virus Against H5 Avian Influenza

2.1.1. Classical Genetic Reassortment Procedure

In 2007, the first Russian prepandemic LAIV candidate against H5 avian influenza, A/17/duck/Potsdam/86/92 (H5N2) (Len–dP), was developed on the base of nonpathogenic A/duck/Potsdam/1402–6/86(H5N2) strain which circulated in nature over 30 years ago [16]. Then, another prepandemic LAIV candidate, A/17/Vietnam/04/65107 (H5N2) (Len–VN), based on H5N1 virus of clade 1, A/Vietnam/1203/2004 was developed [17]. To date, these strains are immunogenically obsolete. For this reason, a potentially pandemic A/17/turkey/Turkey/05/133 (H5N2) (Len–tT) vaccine candidate related to more modern antigenic clade 2.2 was generated [17].

In brief, 6:2 reassortants between Len–MDV and wild–type virus are produced in embryonated chicken eggs following a number of rounds of selective propagation. The production and selection for reassortants is undertaken in the presence of anti–Len–MDV serum. Low temperature propagation (26 degrees C) is also used as selective factor, except for the initial cross (1:1 co–infection of Len–MDV and wild–type virus) and the last cloning by end–point dilution which are both carried out at 32 degrees C. This method of classical reassortment was successfully used for decades to develop seasonal 6:2 LAIV candidates [18, 19].

However, classical reassortment of the Len–MDV with A/duck/Potsdam/1402–6/86 (H5N2) resulted in the temperature sensitive/cold–adapted (ts/ca) H5N2 LAIV candidate, that contained the only HA gene segment from wild–type virus six (reassortant genotype 7:1).

In the next experiments, to reduce a risk of manipulations with highly pathogenic for humans avian influenza viruses, PR8–based reassortants for parenterally administered, IIV of subtype H5N1, VN/PR/CDC–RG and NIBRG–23 were used as a source of external glycoproteins [17]. The HA of these H5N1/PR8 viruses is engineered by Reverse Genetics (RG) to remove four basic amino acid codons from the cleavage site of HA as described in [20], resulting in a virus that is considered to be attenuated for natural hosts and safe for humans. However, classical reassortment of the Len–MDV with H5N1/PR8 viruses is also resulted in 7:1 H5N2 viruses that contained six internal genes and NA gene of MDV (Fig. 2).

Full–genome sequencing of 7:1 vaccine reassortants did not reveal significant changes, which can alter anticipated virus biological properties.

Interestingly, another group of authors faced a similar problem when trying to create 6:2 reassortants based on H5N1 viruses [21]. The results of their attempts were also reassortants with 7:1 gene segment ratio (genome composition). One of the possible reasons for the complexity of inheritance of avian virus origin NA in avian and human reassortant viruses may be associated with a higher body temperature of birds (40 – 42 degrees °С) and correspondingly higher temperature optimum for avian influenza virus polymerases. The problem in obtaining the desired 6:2 gene configuration may be also a result of co–infection of avian and human viruses. The functional incompatibilities between the viral proteins or RNA segments of two differing strains may lead to the segment mismatch that limits the reassortment efficiency [22-24].

Functional balance between HA and NA which is an important condition of influenza virus efficient replication, as well as a role of HA and NA specificities at oligosaccharide level in maintaining such balance, remains poorly studied. HA of avian origin binds exclusively and NA digests efficiently α2–3–sialylated carbohydrate chains, while HA of human origin interacts with α2–6 chains and low–active NA cleaves both α2–3– and α2–6–sialosides. Shtyrya et al [25] suggested that combination of avian HA and human NA may result in decreasing the replicative potential of reassortant virus because of disturbance of a functional balance between “alien” HA and NA. However, Larionova et al [17] demonstrated that combination of avian H5HA and human N2NA resulted in significant increasing the infectivity of 7:1 reassortants in compare with H5N1 parental viruses which contained both HA and NA of avian origin. In addition, phenotypical pattern of H5N2 LAIV candidates did not differ from such of the Len–MDV – transferring seven genes from Len–MDV into the H5N1/PR8 genome led to a dramatic decrease in infectivity of resulting H5N2 reassortants at the temperature of 38–39 degrees C (ts phenotype) and significantly increased their ability to grow at the temperature of 26^oC (ca phenotype).

The authors suggested that in the case of generating a LAIV vaccine candidate for protecting humans against HPAIV, reassortants carrying the HA gene of pathogenic H5 virus and other genes from an attenuated MDV can be a good thing as they could provide extra level of safety for the LAIV candidate. The HA of H5N2 LAIV reassortants is modified for reduced virulence, but it has been observed that avian influenza NA may also be involved in the manifestation of the pathogenic properties of the virus [26]. The presence of NA of cold–adapted MDV, together with genetically modified H5–HA may provide an extra layer of safety for attenuation of H5N2 LAIV candidate against highly pathogenic avian influenza virus of H5N1subtype. As for the immune response, antibodies to the influenza virus HA are known to be the main component of the protection against human [27] and avian influenza viruses [28]. Thus, the evaluation of the individual contributions of each of the surface proteins to the induction of HPAIV–neutralizing serum antibodies and protective immunity showed that immunization of chickens with Newcastle disease virus expressing H5 hemagglutinin of avian influenza virus single or in combination with avian N1 neuraminidase caused in both cases 100% protection from challenge infection with H5N1 HPAIVs. The avian NA in the vaccine preparation did not improve protection generated by antibodies to H5 HA. Immunity to NA extended survival but did not prevent death from HPAIV challenge [29].

2.1.2. Reverse Genetics Technique

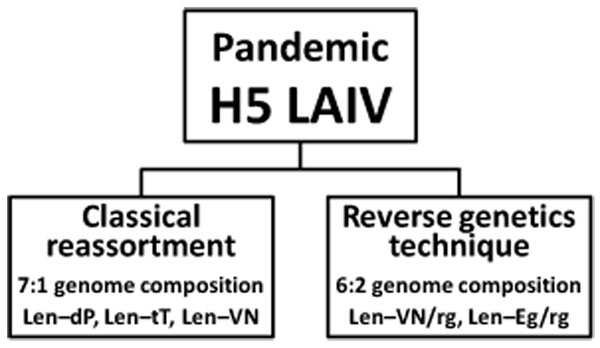

Influenza virus reassortants can be also generated by plasmid–based reverse genetics from segments of DNA (Fig. 2). Because avian–human H5N1 6:2 vaccine reassortants were not possible to obtain despite repeated attempts, alternative reverse genetics approach has been used. Reverse genetics is a promising technology, especially for development and construction of prepandemic influenza vaccines. MedImmune, a biotechnology company (USA), uses reverse genetics technology for development vaccine strains of seasonal, prepandemic and pandemic influenza vaccines as part of the current egg produced LAIV product.

Two H5N1 ca reassortant vaccine candidates, caVN1203–Len17rg (H5N1) (Len–VN/rg) [30, 31] and caEG321–Len17rg (H5N1) (Len–VN/rg) [31], were generated by plasmid–based reverse genetics, with six internal genes from Len–MDV and polybasic–cleavage site–deleted H5HA and intact N1NA genes from A/Vietnam/1203/2004 (H5N1) clade 1 or from A/Egypt/321/2007 (H5N1) clade 2.2 viruses, respectively. 6:2 H5N1–RG LAIV vaccine candidates were rescued by co–transfecting plasmids encoding HA and NA genes of H5N1 viruses with plasmids encoding six internal genes of Len–MDV, as described [30].

The 6:2 reassortant H5N1–RG LAIV viruses were fully sequenced and the absence of any unwanted spontaneous mutations and quasispecies was confirmed. Phenotypic analysis of 6:2 H5N1–RG LAIV reassortants indicated that the ts/ca phenotypes of the H5N1 reassortant viruses were consistent with ts/ca phenotype of Len–MDV.

2.2.1. Mice and Guinea Pigs

A number of sensitive and convenient models are used to test for acute and sub–acute toxicity of drugs, vaccines and other immunobiological preparations. Guinea pigs and mice are the most commonly used species. These two species were used for determination of acute and sub–acute toxicity of Len–tT LAIV candidate [17]. Administration of Len–tT LAIV did not cause death, did not change the external appearance and behavior of animals, did not affect their consumption of food or water, and had no significant effect on body weight.

The results of histopathology study reveal that inoculation of Len–tT LAIV candidate did not cause in mice any inflammation, destructive or dystrophic changes in systemic organs and no dystrophic changes of neurons were observed in brain. The histopathology picture of samples of organs in vaccine groups was similar to that obtained from placebo group. Administration of H5 LAIV vaccine candidates did not cause gross morphological changes, suggesting positive safety profile of H5N2 LAIV [17].

Mice are the most convenient and widely used animal model for influenza vaccine research in terms of size, cost, husbandry requirements etc. This model was used for protective and cross–protective efficacy of Len–dP (H5N2), caEG321–Len17rg (H5N1) and caVN1203–Len17rg (H5N1) LAIV candidates. Immunization of mice with two doses of H5–LAIV candidates induced a strong immune response, and animals were protected against not only homologous but also heterologous highly pathogenic wild–type virus challenge [33]. Replication of challenge viruses in the upper and lower respiratory tracts of immunized animals was significantly reduced compared to the controls, and no signs of disease were observed in any of the vaccinated animals [30, 31, 33].

In summary, the vaccination of mice with Len–dP, caEG321–Len17rg (H5N1) or caVN1203–Len17rg (H5N1) LAIV candidates provided substantial cross–protection from challenge with H5N1 HPAIV.

2.2.2. Monkeys

Monkeys are thought to more closely reflect the human response to influenza than more distantly related mammalian species (mice, ferrets, hamsters, guinea pigs etc). Thus, monkeys have been used to study HPAIV infection caused by avian H5N1 and virus [34]. However, their high cost, complex husbandry requirements, relatively low availability, and ethical issues make nonhuman primates less accessible for routine studies of influenza than another animal models. Despite these difficulties, it was important to characterize the first Russian prepandemic LAIV against H5 HPAIV in full. Thus, safety and cross–protection efficacy of Len–dP LAIV against a modern HPAIV were studied in Java macaques [4]. Monkeys were vaccinated with two doses of Len–dP LAIV; they were monitored for a week after each vaccination by examining body temperatures, behavior and weight loss. Len–dP LAIV was safe and areactogenic for monkeys. No fever or other side effects were observed following vaccination. After challenge with a modern heterologous HPAIV A/chicken/Kurgan/02/05 (H5N1) clade 2.2 half of vaccinated monkeys were shown to be fully protected. Duration and severity of fever reactions, the absence of viremia and virus replication in the upper respiratory tract were significantly reduced [5].

2.2.3. Ferrets

For pandemic/prepandemic candidate influenza vaccine viruses against HPAIVs preclinical testing in ferrets and chicken should be performed [35]. The WHO strategy to demonstrate the absence of highly pathogenic characteristics includes, in particular, assessment of attenuation of the H5 LAIV candidates in ferrets and their non–pathogenicity in chickens.

Retention of key attenuating mutations is one of the very important characteristics of reassortant LAIV [36, 37]. Genetic stability of Len–dP LAIV after replication in upper respiratory tract of ferrets was confirmed. Vaccine viruses isolated from the immunized ferrets were shown to preserve all attenuating mutations described for the Len–MDV [16]. Ferret challenge study demonstrated reasonable protection of ferrets vaccinated with Len–dP LAIV from severe respiratory damage and death after challenge with heterologous HPAIV A/turkey/Turkey/1/05 (H5N1) clade 2.2 [38].

Three other intranasal LAIVs against pandemic influenza H5 variants, Len–tT (H5N2), Len–VN (H5N2) and Len–VN/rg (H5N1) were evaluated for attenuation, immunogenicity and efficacy in ferret challenge study [17, 30]. Ferrets were intranasally inoculated with H5 LAIVs to confirm their safety and attenuation properties. No H5 LAIV viral antigen expression was seen in any of the lung and nasal turbinate samples tested, while H5N1 HPAIV was detected in tested samples on day 3 and 5 post–inoculation. No clinical signs of illness including weight loss, dehydration, diarrhea, or dyspnea were seen in vaccinated animals. No histological changes typical for influenza virus infection were seen in the lungs of animals vaccinated with H5N2 LAIV candidates. Vaccinated ferrets did not demonstrate any reduction in body weight compared to placebo group.

H5 LAIVs protected ferrets from challenge with homologous HPAIV, while placebo–vaccinated animals demonstrated clear signs of disease and succumbed to infection. Infection with wild–type H5N1 influenza of which H5 was homologous to the vaccine induced severe disease in ferrets that were vaccinated with the placebo. The animals suffered from a strong reduced activity and heavy breathing, severe weight loss and severe fever and one animal died from the infection. In these animals, virus replication was detected at high titers in the throat, lung and trachea 5 days after infection. Upon post mortem examination, the lungs appeared swollen and showed multifocal consolidation. On the macroscopic level, approximately 70% of the tissue was affected. Microscopically, approximately 60% of the lung parenchyma were affected. Vaccination with H5–LAIV significantly reduced replication of challenge HPAIV in nasal turbinates and completely prevented its replication in lung tissue, while in placebo group wild–type H5N1 virus was detected in the nasal turbinates and lungs on day 3 and 5 post–inoculation. Vaccination significantly reduced all the infection related clinical signs and virus replication in the respiratory tract. Vaccinated ferrets showed minimal reduced activity, minimal weight loss and minimal fever. Moreover, none of the ferrets died from the infection. Virus replication was reduced to just above detection level in the throat and was below detection level in the trachea and lung. On the macroscopic level, no or minimal abnormalities were observed in the lungs, edema was not present. Microscopically, the infection damage was restricted to a minimal to light inflammation.

Two doses of caVN1203–Len17rg (H5N1) clade 1 LAIV elicited strong cross–reactive immune response; animals were protected from heterologous challenge with clade 2.2 HPAI viruses; a superior cross–protection of LAIV over IIV was demonstrated.

The H5–LAIVs raised specific antibodies against H5 influenza virus in significantly high titer, especially after a second dose. In addition, immunological cross–reactivity of H5–LAIV candidates was demonstrated. The results indicated that H5–LAIVs elicited a cross–reactive antibody response to the H5N1 viruses of clades 1 and 2.2. In contrast, no cross–reactive antibody response to clade 2.3 virus was observed.

2.2.4. Chickens

Infection of poultry with HPAIVs can cause severe disease with high mortality. Genes of reassortant H5–LAIV candidates coding for glycosylated surface proteins are inherited from avian influenza parental viruses – HA of 7:1 vaccine candidates or HA+NA of 6:2 vaccine candidates, respectively. Thus, evaluation of safety and attenuation of H5–LAIV candidates in chicken model is important to answer a question – do live attenuated vaccines based on HPAIV pose threat for the poultry industry?

Evaluation of safety and attenuation of H5–LAIV candidates was performed in White leghorns. For the determination of pathogenicity of H5–LAIV candidates, chickens were inoculated intravenously and observed daily for 14 days for clinical signs and death. To determine infectivity, chickens were inoculated intranasally. On day 3 post–infection oropharyngeal and cloacal swabs were collected from chickens and virus replication was assessed in embryonated chicken eggs. The chickens were observed for clinical signs of disease and death for 21 days, at which time serum samples were harvested and tested for presence of antibodies.

The intravenous pathogenicity index of tested viruses Len–dP [33], Len–VN, Len–tT and Len–VN/rg [17, 38] in chicken was 0. It means that no birds showed any clinical signs or died during the 10–day observation period after intravenous vaccine injection. On day 3 after intranasal administration H5–LAIV, vaccine viruses were not detected in swabs of the upper respiratory tract and of the cloaca, lungs, kidneys, heart and brain tissues. H5–LAIV candidates were unable to replicate productively in birds and released to the environment, being completely attenuated. None of birds presented antibodies detectable after intranasal administration.

These data suggest that H5–LAIV candidates can be used for manufacturing human prepandemic influenza vaccines against highly pathogenic avian influenza viruses with minimum threat posed to the poultry industry.

In conclusion, regardless of the gene ratio in vaccine candidate (7:1 or 6:2) LAIVs against pandemic H5 were attenuated, immunogenic and effective in protecting animals of different species from severe disease, mortality and pathology and almost completely reduced virus replication.

2.3.1. Clinical Observations (Adverse Reactions)

Both vaccines were well tolerated and no clinically significant adverse events were observed. Any safety concerns were not indicated (Table 3). Most local and general adverse events were temporary, mild to moderate in severity and self–limiting. Among vaccinees with Len–dP LAIV, the most common safety complaints were catarrhal symptoms (40%) [39, 41]. The most common adverse events reported following receipt of Len–tT LAIV included nasal congestion, sneezing, catarrhal nasopharynx, sore throat, fever, and chills and occurred at similar frequencies in vaccine and placebo recipients [40]. Importantly, that a few reactions reported in Len–dP trial were of short duration with no consequences; the number of solicited adverse events reported in volunteers vaccinated Len–tT LAIV were not statistically different from that of the corresponding placebo groups.

2.3.2. Shedding

In total, Len–dP LAIV virus was recovered by culturing nasal swabs in eggs from 11/20 (55%) and 14/20 (70%) vaccinees after dose 1 and 2, respectively [39]. Detection of virus shedding by PCR was not performed. Len–tT LAIV virus was detected by PCR in nasal swabs in 28/30 vaccinees (93%) after the first vaccination and in 21/29 (72%) after the second vaccination. Virus from nasal swabs was recovered in embryonated eggs in 10/30 vaccine recipients (33%) after the first and 6 of 29 (21%) after the second dose.

The duration of shedding of Len–tT LAIV virus in adult volunteers was very restricted and limited with only one day. In contrast, the duration of shedding of Len–dP LAIV was substantially higher and continued for up to 6.6 and 6.3 days after dose 1 and 2, respectively.

2.3.3. Genetic Stability

The possibility of acquisition of additional mutations in LAIV virus genome during its replication in embryonated chicken eggs or humans is not surprising. Theoretically, each passage of an influenza virus may introduce new mutations or revert attenuated virus to virulent form. From this point of view, evaluation of the possibility of reversion to partial or full virulence post vaccine administration to people and genetic stability of LAIV candidate are extremely important quality characteristics. From safety issues first of all retention of attenuating mutations in internal genes known for MDV must be confirmed. Secondly, evaluation of stability of gene coding for HA is also very important, especially for prepandemic LAIV despite a fact that the development of prepandemic LAIV candidate involves modifications in the HA cleavage site [35].

According to WHO position on assurance of safety of LAIV, the absence of reversion to virulence (genetic stability) should be determined in preclinical and clinical studies [36]. Clinical trials in 20 adult volunteers confirmed genetic stability of the Len–dP LAIV [15]. Genetic and phenotypic stability of another H5–LAIV candidate, Len–tT after replication in humans was also demonstrated [42, 43]. A number of coding mutations in internal genes responsible for attenuation of Len–17 MDV and Len–17 MDV–based reassortant LAIVs is well known [44-46]. All these att mutations known for Len–17 MDV, were preserved in the genome of 16 Len–tT (H5N2) vaccine isolates recovered from nasal swabs of vaccinees. No mutations in HA which may lead to reversion to wild type virus HA were detected.

2.3.4. Transmission

Since reassortant LAIV can replicate in upper respiratory tract of vaccinated individuals, there is a concern about a risk of unpredictable reassortment in nature between cold–adapted and wild–type viruses as a result of simultaneous infection of human host with vaccine virus and circulating wild–type influenza strain which might produce a progeny that contain novel, more virulent genotypes. However, no evidences of prepandemic Len–MDV–based H5 vaccine virus transmission from vaccinated individuals to their unvaccinated contacts have been reported. Of note, vaccine virus was not detected in placebo groups indicating the lack of person–to–person transmission.

2.3.5. Immunogenicity

Clinical testing of prepandemic H5–LAIV candidates in healthy adult volunteers revealed comparable levels of their immunogenicity. After two doses of Len–dP LAIV about half of vaccinees demonstrated seroconversions in HAI and microneutralization tests [15]. After the second vaccination with Len–tT LAIV, 38% of the vaccine recipients presented a ≥4–fold increase in HAI test and 48% – in microneutralization assay, respectively. To further characterization of antibody response to Len–tT vaccine, several additional tests, including detection of serum IgG and IgA antibodies as well as mucosal IgA antibody, by ELISA were performed. Cumulative data on antibody immune responses showed that 79% of vaccinated subjects had antibodies after dose 1 and/or 2.

Serum immune responses are recognized as a good correlate of vaccine protection for inactivated influenza vaccine. In contrast, HAI titers do not appear to correlate with protection against influenza by LAIV [47]. WHO considers important to assess the potential efficacy of LAIV by measuring not only humoral response but also innate, mucosal and cellular immune responses [36].

Len–dP LAIV was able to induce reliable increases in T–cell levels. Two doses of Len–dP LAIV promoted CD4⁺ and CD8⁺ memory T–cell responses in peripheral blood of healthy volunteers [48, 49]. Similar results were obtained for Len–tT vaccine. Overall, 69% subjects vaccinated with Len–tT LAIV had ≥4–fold increases in CD4⁺ or CD8⁺ responses [40]. In total, percentage of all positive immunological reactions after dose 1 and/or 2 reached 97% for Len–tT LAIV. Interestingly, the low duration of Len–tT vaccine virus shedding did not influenced dramatically on its immunogenicity.

2.3.6. Cross–Reactivity and Prime–Boost Strategy

Influenza A (H5N1) viruses continue to undergo antigenic drift. During last decades 10 clades (0 – 9) and numerous subclades have been identified [50]. Information regarding the ability of vaccines from one clade of virus to stimulate antibody against other clades of virus is of critical importance. There are reasons to believe that H5–LAIV may elicit production of broadly reactive antibodies, which could neutralize the newly emerged avian influenza viruses. Rudenko et al [39] demonstrated that humoral immune responses to the Len–dP LAIV were cross–reactive, and near 30% of serum samples reacted with antigenically divergent virus A/Indonesia/05/2005 (H5N1).

A number of publications illustrated the possibility to enhance the immune response to inactivated and live influenza vaccines. These studies suggested that administration of a combination of IIV and LAIV may provide a strategy for improved influenza vaccination, in particularly – in elderly [51, 52]. The idea to administer of a combination of two different types of influenza vaccines led to the development of novel vaccination approach – so called prime–boost strategy, which could result in induction of significant immune response to a booster IIV following priming with homologous or heterologous LAIV [53-55]. Similar to these prime–boost studies, assessment of immune responses to tT (H5N1) inactivated influenza vaccine among individuals previously primed with Len–tT (H5N2) LAIV was performed [56]. Data revealed that priming with Len–tT LAIV induced a long–lasting B–cell immunological memory in subjects against antigenically related influenza virus, which was characterized by more prompt and vigorous antibody production to a single dose of H5–IIV given 18 months later.

Thus, prepandemic vaccines of 7:1 gene configuration demonstrated a good safety profile and were well tolerated. The two–dose immunization schedule resulted in measurable serum and local antibody production, and generation of CD4⁺ and CD8⁺ memory T cells. Dose–related increases in immune responses were demonstrated. Importantly, the H5–LAIV–induced antibodies were cross–reactive and were able to neutralize antigenically divergent viruses.
